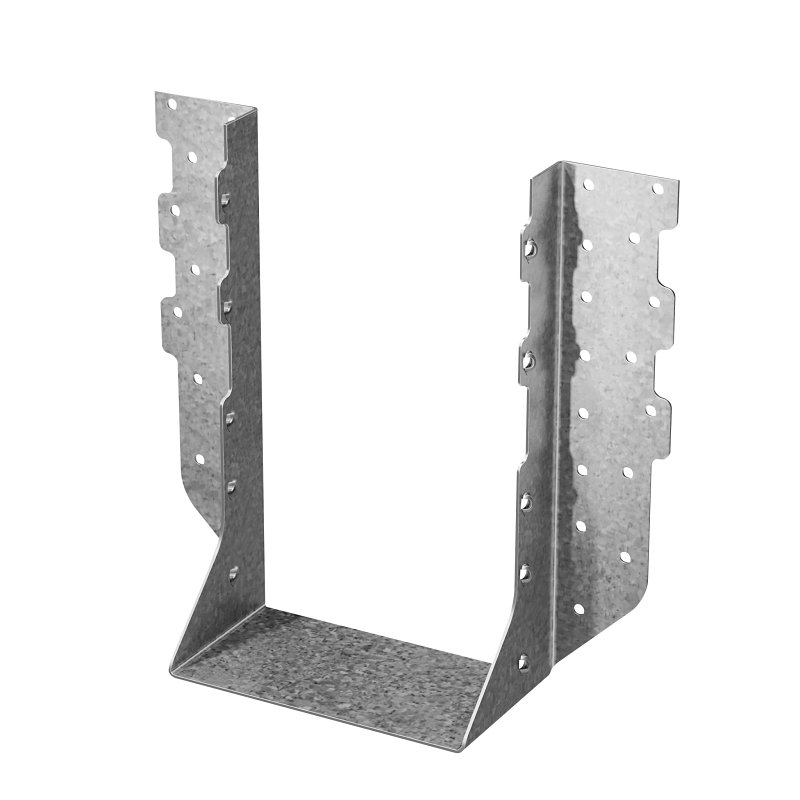

Simpson Strong-Tie HHUS HHUS5.50/10 Hanger, 9 in H, 3 in D, 5-1/2 in W, 5-1/2 X 9-1/4 in, Steel, Galvanized

Simpson Strong-Tie

Simpson Strong-Tie HHUS HHUS5.50/10 Hanger, 9 in H, 3 in D, 5-1/2 in W, 5-1/2 X 9-1/4 in, Steel, Galvanized

$23.09$23.09
Simpson Strong-Tie HHUS HHUS5.50/10 Hanger, 9 in H, 3 in D, 5-1/2 in W, 5-1/2 X 9-1/4 in, Steel, Galvanized
  • Depth: 3 in
  • Fastener Type: Nail
  • Finish: Galvanized
  • Material: Steel
  • Mounting Type: Face
  • Model #: HHUS5.5/10
  • UPC #: 044315209604
  • SKU: 7494628

Your shopping list will be used for pickup in-store

Product Details

The HHUS is designed for applications where higher loads are needed. This heavy-capacity hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This feature allows for fewer nails, faster installation and the use of all common nails for the same connection.

Key Features

  • Galvanized (G90) for extra corrosion resistance
  • Can be installed after the beam is secured in place
  • Value-engineered hanger designed to carry high-loads at an economical price
  • HHUS series hangers are tested, load-rated and code compliant

Item Specifications

Depth3 in
Fastener TypeNail
FinishGalvanized
MaterialSteel
Mounting TypeFace
Size5-1/2 X 9-1/4 in
Skew Angle45 deg
Width5-1/2
