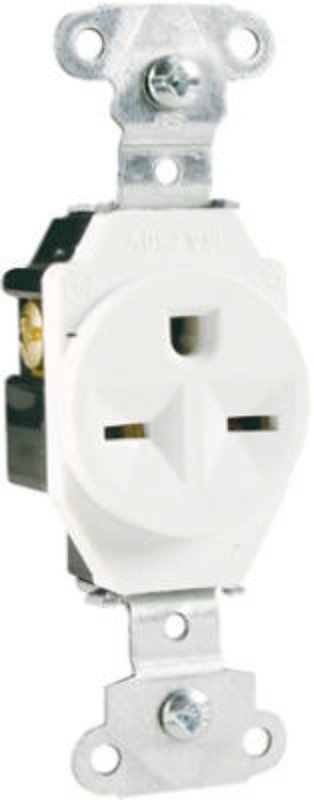

Legrand 5651WCC8 Heavy-Duty Single Receptacle, 2 -Pole, 250 VAC, 15 A, Side Wiring, NEMA: NEMA 6-15R, White

Legrand

Legrand 5651WCC8 Heavy-Duty Single Receptacle, 2 -Pole, 250 VAC, 15 A, Side Wiring, NEMA: NEMA 6-15R, White

Legrand 5651WCC8 Heavy-Duty Single Receptacle, 2 -Pole, 250 VAC, 15 A, Side Wiring, NEMA: NEMA 6-15R, White
  • Color: White
  • Current Rating: 15 A
  • Dimensions: 1.32 in W x 1.08 in D x 3.28 in H
  • NEMA Configuration: NEMA 6-15R
  • Number of Poles: 2
  • Model #: 5651WCC8
  • UPC #: 785007858365
  • SKU: 0251710

Your shopping list will be used for pickup in-store

Key Features

  • Auto-ground clip assures positive ground
  • Two-drive screws anchor strap to back body and face where abrupt removal torque is greatest
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength
  • Backed-out tri-drive steel terminal screws
  • Internal screw pressure plate back and side wire capability
  • Two-back wire holes for increased wiring flexibility
  • One-piece brass triple-wire power contacts for lasting retention

Item Specifications

ColorWhite
Current Rating15 A
Dimensions1.32 in W x 1.08 in D x 3.28 in H
NEMA ConfigurationNEMA 6-15R
Number of Poles2
Number Of Wires3
Voltage Rating250 VAC
Wire Size14 to 12 AWG
Wiring TypeSide
