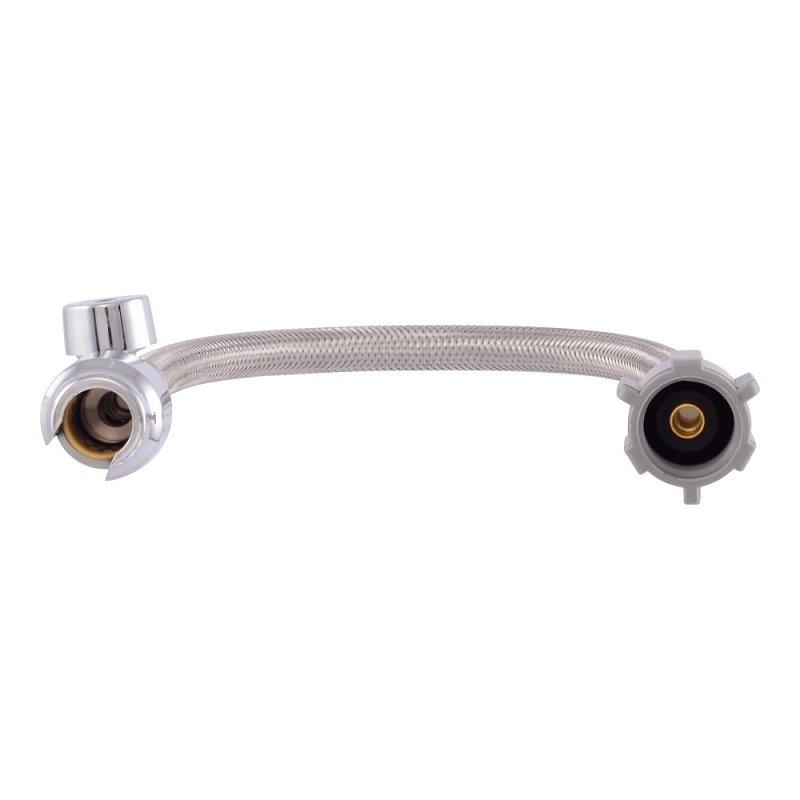

SharkBite UR24686 Toilet Connector with Straight Stop Valve, 1/2 in Inlet, PTC Inlet, 7/8 in Outlet, BC Outlet, 16 in L

SharkBite

SharkBite UR24686 Toilet Connector with Straight Stop Valve, 1/2 in Inlet, PTC Inlet, 7/8 in Outlet, BC Outlet, 16 in L

$23.49$23.49
SharkBite UR24686 Toilet Connector with Straight Stop Valve, 1/2 in Inlet, PTC Inlet, 7/8 in Outlet, BC Outlet, 16 in L
  • Connector Material: Brass
  • Inlet Connection Size: 1/2 in
  • Inlet Connection Type: PTC
  • Length: 16
  • Outlet Connection Size: 7/8 in
  • Model #: UR24686
  • UPC #: 697285075092
  • SKU: 3690088

Your shopping list will be used for pickup in-store

Product Details

Experience streamlined plumbing installations with the SharkBite max stainless steel braided toilet connector, featuring a built-in 1/2 in push-to-connect stop valve. This product ensures a secure and watertight connection, enhancing the efficiency of your setup without the complexity of hand tightening. Its design is ideal for rapid and straightforward installations, particularly suitable for tight spaces and reducing the likelihood of installation errors. This connector is part of the SharkBite max product line and is attached to a durable stainless steel braided supply line. The integrated SharkBite max angle stop allows for precise control and shut-off of water flow to plumbing fixtures and appliances for maintenance and repair purposes. The innovative 1/2 in push-to-connect inlet allows for quick and easy installation, while the quarter-turn full-port brass ball valves ensure reliable operation. The SharkBite max stainless steel braided toilet connector with stop valve simplifies the plumbing process, ensuring a quick, reliable and efficient installation.

Key Features

  • Compatible with PEX, copper, CPVC, PE-RT or HDPE SDR-9 pipe
  • Can be installed on wet lines and is pressure-testable immediately
  • Includes a stainless steel retainer for added strength and durability
  • Features a high-performance DZR lead-free brass body
  • Requires no special tools, crimping, soldering or glue for installation
  • Allows for rotation after installation, no tube liner required for PEX
  • Rated to withstand up to 160 deg F and 125 psi
  • Can be easily removed using a disconnect clip, disconnect tongs or pro disconnect tool

Item Specifications

Connector MaterialBrass
Inlet Connection Size1/2 in
Inlet Connection TypePTC
Length16
Outlet Connection Size7/8 in
Outlet Connection TypeBC
Pressure Rating125 psi
Temperature Rating160 deg F
Tubing MaterialStainless Steel
