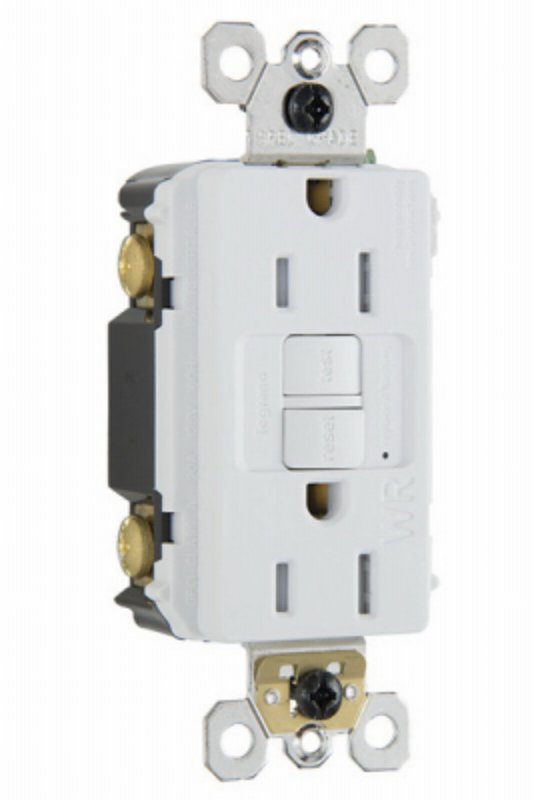

Pass & Seymour radiant Series 1597TRWRWCCD4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 VAC, 3-Wire

Legrand

Pass & Seymour radiant Series 1597TRWRWCCD4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 VAC, 3-Wire

Pass & Seymour radiant Series 1597TRWRWCCD4 GFCI Duplex Receptacle, Nylon, White, 2-Pole, 15 A, 125 VAC, 3-Wire
  • Color: White
  • Current Rating: 15 A
  • Dimensions: 1.62 in W x 1.13 in D x 4.19 in H
  • Frequency Rating: 60 Hz
  • Material: Nylon
  • Model #: 1597TRWRWCCD4
  • UPC #: 785007135787
  • SKU: 0252981

Your shopping list will be used for pickup in-store

Key Features

  • New external back wire pressure plates
  • New posted terminal screws for faster installation
  • Conducts an automatic test every 3 s, ensuring it's always ready to protect, If the device fails the test, the trip indicator light red LED flashes to signal that the GFCI should be replaced
  • Equipped with proven SafeLock protection feature, if critical components are damaged and protection is lost, power to the receptacle is disconnected
  • Patented shutter system helps prevent improper insertion of foreign objects
  • Redesigned side wire cavity improves speed of side wire installation
  • Feed-thru wiring configuration allows GFCI to protect downstream receptacles
  • Prevents line-load reversal miswire, no power to the face or downstream receptacles if wired incorrectly
  • Tamper-resistant construction

Item Specifications

ColorWhite
Current Rating15 A
Dimensions1.62 in W x 1.13 in D x 4.19 in H
Frequency Rating60 Hz
MaterialNylon
NEMA Configuration5-15R
Number of Poles2
Number Of Wires3
Operating Temperature-35 to 66 deg C
Voltage Rating125 VAC
Wire Size14 to 10 AWG
Wiring TypeBack Side

WARNING: California Residents see Prop 65 Warnings
