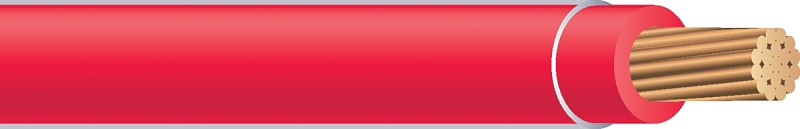

Southwire 22966684 Series Building Wire, Red Sheath, 12 AWG Wire, 1-Conductor, 100 ft L, Copper Conductor, Stranded

Southwire

Southwire 22966684 Series Building Wire, Red Sheath, 12 AWG Wire, 1-Conductor, 100 ft L, Copper Conductor, Stranded

Southwire 22966684 Series Building Wire, Red Sheath, 12 AWG Wire, 1-Conductor, 100 ft L, Copper Conductor, Stranded
  • Conductor Insulation: PVC
  • Conductor Material: Copper
  • Current Rating: 20 A
  • Length: 100
  • Number of Conductors: 1
  • Model #: 22966684
  • UPC #: 032886918209
  • SKU: 6541635

Your shopping list will be used for pickup in-store

Product Details

Southwire Building Wire, THHN, Wire Size: 12 AWG, 100 ft L, Number of Conductors: 1, Strands per Conductor: 19, Conductor Material: Copper, Conductor Insulation: PVC, Stranded/Solid: Stranded, Sheath Material: Nylon, Sheath Color: Red, Sheath Diameter: 0.13 in, 600 VAC, 20 A, Operating Temperature: 194 deg F

Item Specifications

Conductor InsulationPVC
Conductor MaterialCopper
Current Rating20 A
Length100
Number of Conductors1
Operating Temperature194 deg F
Sheath ColorRed
Sheath Diameter0.13 in
Sheath MaterialNylon
Stranded/SolidStranded
Strands per Conductor19
TypeTHHN
Voltage Rating600 VAC
Wire Size12 AWG
